Industrial Fiber Laser Engraver technology is now reimagined, The MarkTech 30i Portable Metal Laser Engraver processes Handheld Laser Engraver tasks with built-in TouchScreen Laser Controller.

Handheld Laser Engraver MarkTech 30i

The MarkTech 30i is a plug-and-play Handheld Laser Engraver that makes Metal Laser Engraving of Large Products and Widgets across the manufacturing shop floor, simple and efficient...for Laser Enraving result and permanent laser annealing Dark Marks.

The Handheld Laser Engraver can perform Laser Marking and Etching on most non-porous surfaces, such as metal, plastic, ceramics and more. Common uses are for, Fiber Laser Engraver of Part Numbers, lot and Manufactured Date coding. Track and Trace Identification Handheld Laser Marking Machine for Manufacturing such as; Laser Annealing machine-readable 1D Barcodes and 2D Datamatrix Codes.
At only 26Lbs, the MarkTech 30i was designed as a Portable Laser Engraver. Easily move it to another location in your shop or laydown yard and bring the Laser Engraving Metal work to the point of activity.

*No PC required. This Metal Laser Engraver Machine has an embedded Linux Operating System built-in. The Laser Marking Software allows the user to pre-configure and store multiple, Fiber Laser Etching Jobs customized for each of the items you commonly need to mark.
Just connect to power and via the onboard TouchScreen Controller you'll be Laser Marking and Coding in no time flat. Alternatively, Connect the laser machine to your company's Ethernet network, via the Ethernet Port for remote connectivity to data sources.

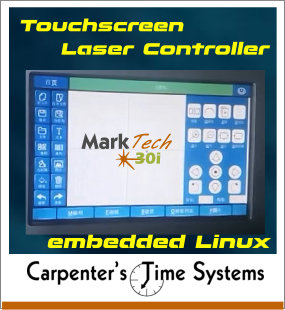

Laser Controller Touchscreen for Handheld Laser Engraver Easy Focus Red Beam for Handheld Laser Enraver Marking Area

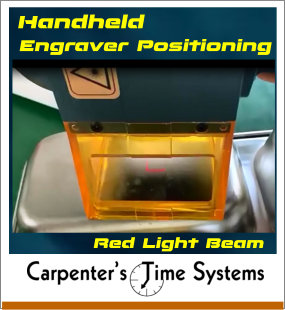

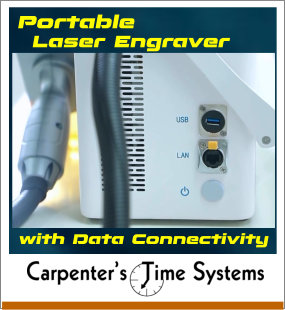

Red Beam Focus for Handheld Portable Laser Engraver Portable Laser Engraver with USB and Ethernet Ports

    Laser Specifications of the MarkTech 30i Metal Laser Engraver Machine

  • Laser Power: 30w Fiber Laser
  • Laser Wavelength: 1064nm
  • Control System: 7-inch Touchscreen Controller
  • Frequency Tunable Range: 30-60khz
  • Marking Area(standard):100mm x 100mm (F=160mm).
  • Positioning: Red Light indicates Position of Marking
  • Marking Speed: approx 650 characters/sec
  • Marking Speed: less-than/equal-to; 12000 mm/sec
  • Minimum Line Width: 0.03mm
  • Minimum Character Height: 0.15mm
  • Repetition Accuracy: +/-0.01mm
  • Cooling: Air Cooled
  • Working Temperature: 50-95F / 10-35C
  • Oprating System: Linux
  • Case Material: Anodized Aluminum Structure
  • Contact Power required for operation - 100V-230V/50-60Hz, 300 Watt

    optional Laser Engraving Equipment and Upgrades

  • Fixturing and Attachments for the Handheld Laser Engraver head.
  • Laser Safety Glasses...don't forget, get a pair for every team member that will operate or observe the Laser Engraver Machine

Consider the Laser Marking Equipment Supplier behind the System...
"Since 1962"

Portable Laser Engraver Applications for the MarkTech 30i Fiber Laser

Laser Engraver for Metal

Laser Engraver for Metal

The Handheld Laser Engraver produces a crisp and legible dark marks, Date Codes and Lot/Batch Numbers and Datamatrix Barcodes onto Metals with a Fiber Laser.
Laser Engraving Plastic with Handheld Laser Engraver

Laser Engraving Plastic

Laser Engraving Plastic with Handheld Laser Engraver.
Aluminum Laser Engraver

Aluminum Laser Engraver

Manufacturers of Aluminum Parts need not look further for an affordable Handheld Laser Engraver for Laser Engraving Bare Aluminum.
Laser Engraving Stainless Steel for Manufacturing with 2D QR Code

Part Number and Datamatrix QR Code Label for Industrial Manufacturing with Laser Engraver

Laser Marking Stainless Steel with Text Part Numbers onto Metal Casing and metal found in Manufacturing.
Plastic Laser Marking

Plastic Laser Marking

Utilize the Handheld Laser Engraver for Plastic Laser Marking. Laser Etch on Plastic for permanent Laser Marking of Part Numbers, Barcodes, Warings or Instructions and full Diagrams directly.
Laser Engraved QR Code Metal Tags Variable Data

Laser Engraved QR Code Metal Tags Variable Data

Anodized Aluminum is a perfect match to Laser Engraver Part Numbers, Barcodes and QR Code, Product Logos and Images onto metal.

Metal Laser Engraver Datamatrix and QR Code, Barcode Laser Engraver and laser engraved qr code metal tags variable data -
Laser Marking Machine Handheld.

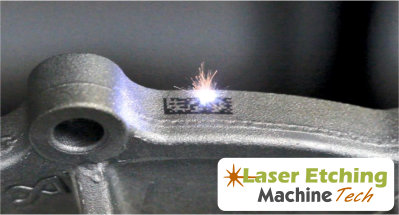

Barcode Laser Engraver on Automotive Parts

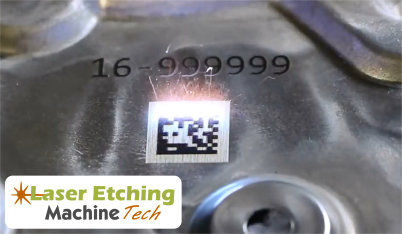

Handheld Laser Engraving Bare Aluminum

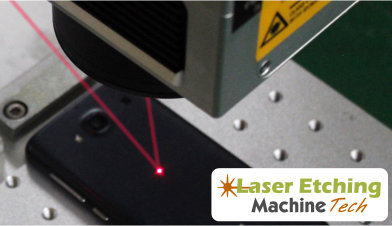

Smartphone Laser Engraving Portable

MarkTech30i Portabe Laser Engraver Resources
brochures, manuals, technical specs

  • Laser Controller Dimensions:
    10.60"(h) x 12.60"(w) x 6.20"(d)

  • Handheld Laser Engraver Head Dimensions:
    9.50"(h) x 3.11"(w) x 6.00"(d)

  • Weight: 26lbs

      • Shipping Weight: 36lbs

          What's in the Box:

        • MarkTech30i Laser Engraver Machine Controller

        • Handheld Laser Engraver easy focus Red Laser Beam

        • USB Port and Ethernet Port

        • Laser Engraver Software is built-into laser controller with Touchscreen, No PC required.

        • Power Supply: 100-230V,50/60Hz

        • Laser Safety Glasses (1-Pair)

        • USB Stick with User Manuals

          Item: MarkTech-30i

          Laser Engraving Machine Price: $Call for Quote

Metal Laser Engraver Accessories
Optional Handheld Laser Engraver Tools

Fiber Laser Safety Glasses

Fiber Laser Safety Glasses

Item: GLASSES-Fiber-Laser-1064nm-Green
Price: $105.00

3 ways to order

  •     Call in your Order
        (888) 838.5391

  •     Print our Fax Order Form
        Fill-n-Fax your order

  •  MetalLaserEngraver.com     On-Line Store (coming soon)

  •          Item: MarkTech-30i

    Our Price: $Call for Quote

    Availability: Typically ships within 36-48 hours

Applications for Handheld Fiber Laser Marking Machine

Laser Marking and Etching
Text, Date/Time, Images, 1D Barcodes and 2D Codes Datamatrix and QR Codes

Connect to CSV/Excel for Marking Variables Data

Laser Etching
Changes the surface finish of metals, it alters its reflectivity and enhances contrast. Removes 0.001" or less of the material.

Laser Marking
Creates high-contrast annealing marks without disrupting the material's surface.

Laser Ablation
This process works by focusing a laser onto a substrate to remove a material that is on it's surface.
